Application
Pressure transducer e.g. for use in medical andlaboratory-specific measuring technology, shipbuildingand hydrostatic level measurement.
Your benefits
Dry capacitive ceramic sensor
• Basic ceramic material Aluminum oxide ceramicAl2O3 (Measuring cells 1 bar purity 99,7 %) (Measuring cells 2 bar purity 96 %)
- high overload resistance
- long-term stability
- corrosion-resistant

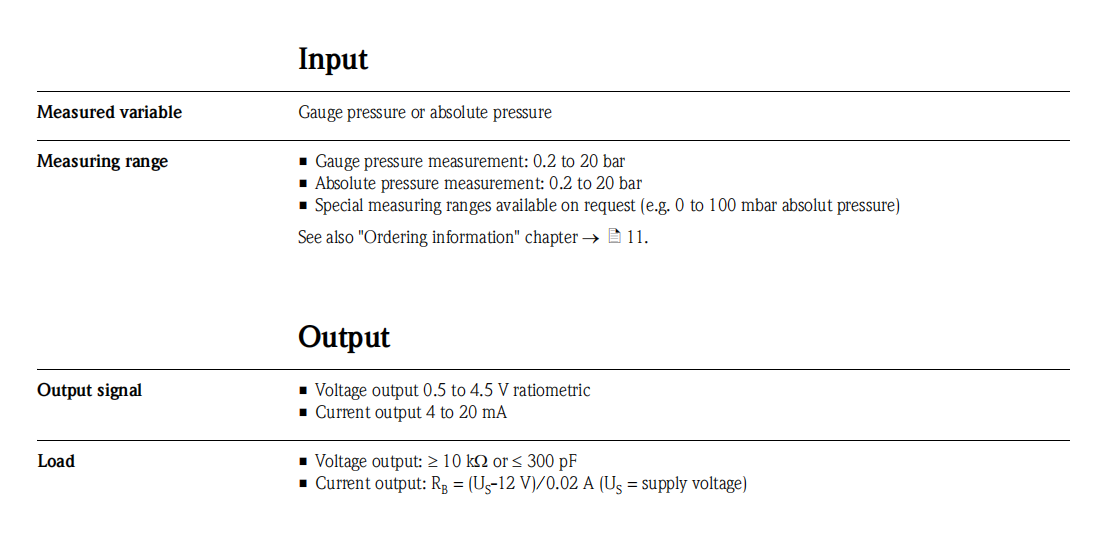

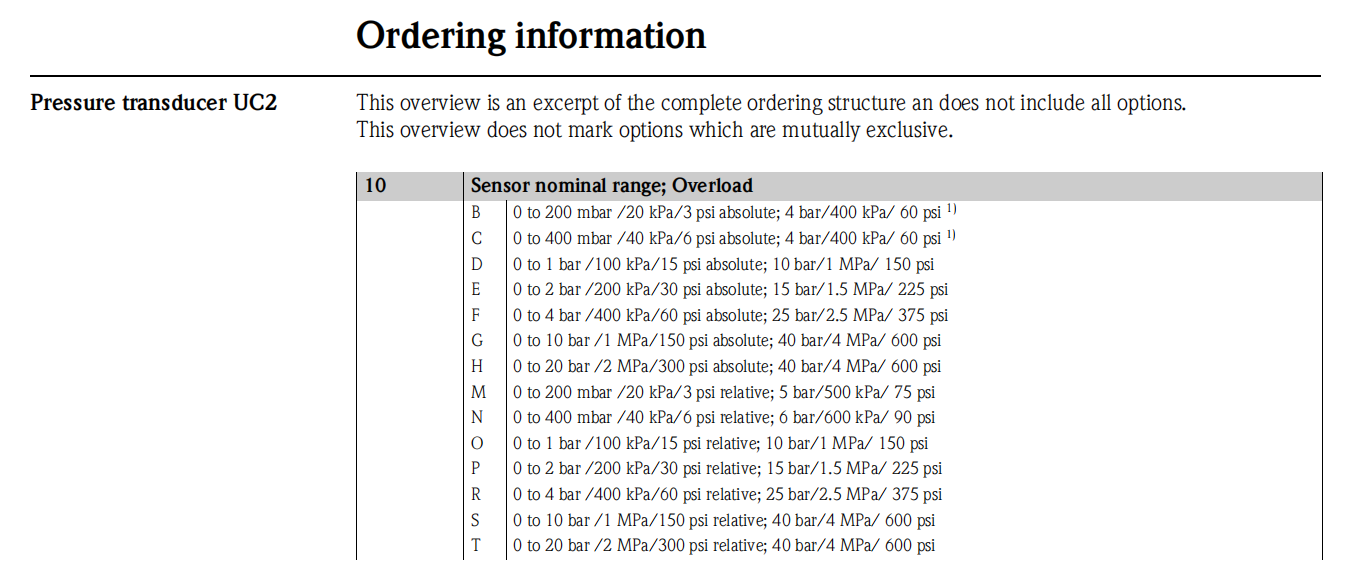

• Finely graduated measuring ranges: 0 to 200 mbar to 0 to 20 bar gauge pressure orabsolute pressure
• Special measuring ranges available on request e.g. 0 to 100 mbar gauge pressure
• Small physical size from Ø21.9 mm
• Flexibly adapted to customer-specific requirements
• Housing made from various materials
• Various seal materials

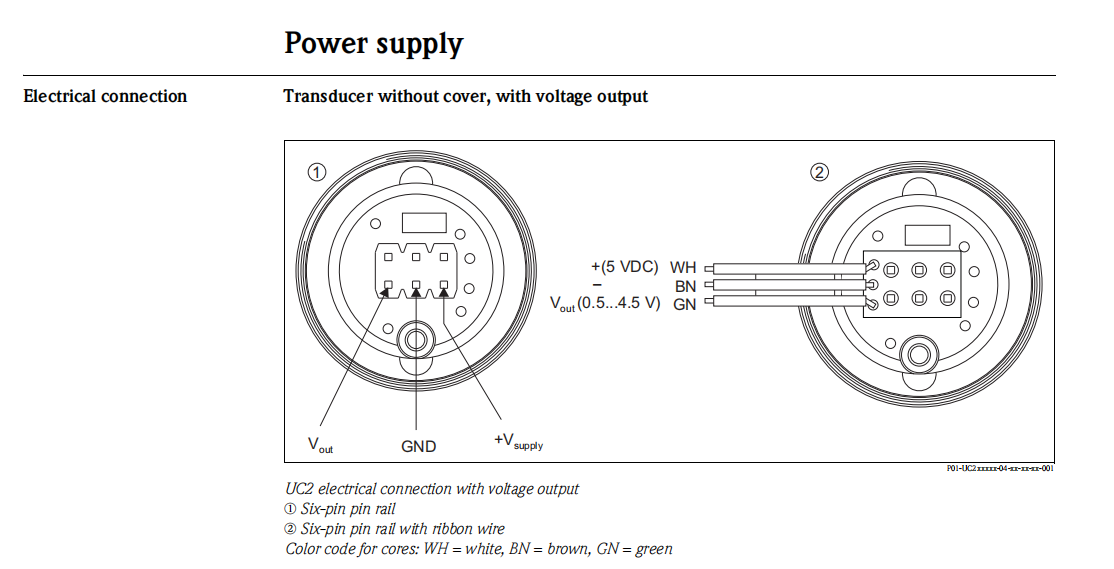

• Output signal 0.5 to 4.5 V or 4 to 20 mA
